High-Power Diode Modules

MaxxPower lasers deliver outstanding optical power and reliability in free space or through optical fibers.

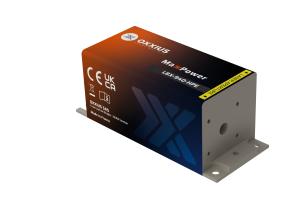

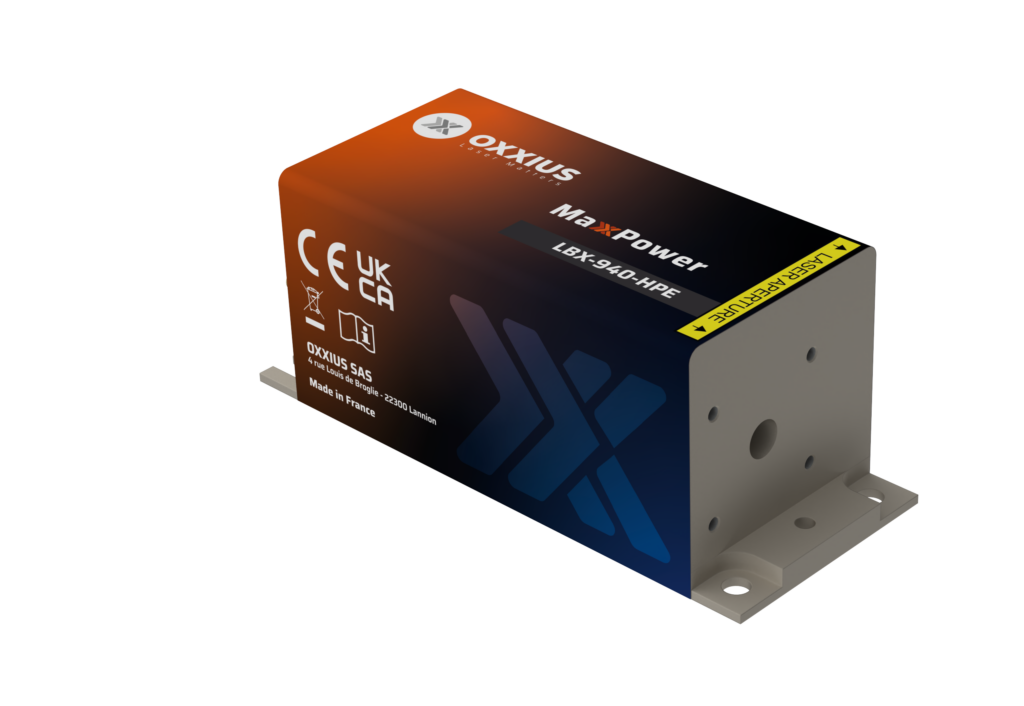

Lbx 940 Hpe.1

Maxxpower

Go compact. Stay Powerful.

At Oxxius, we turn compactness into capability. The MaxxPower series brings together high power, reliability and flexibility, delivering consistent multimode beams. Ready to integrate, ready to perform.

Download the brochure
Product ref. Wavelength Power range Spectral linewidth Optical noise
Product ref. LBX-375

375 nm

200-400 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-405

405 nm

900-1200 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-425

425 nm

1400 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-450

450 nm

650-1200 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-473

473 nm

1000 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-488

488 nm

1000 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-520

520 nm

800 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-638

638 nm

1100 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-750

750 nm

1200 mW

≤ 2nm

≤ 1.0% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-785

785 nm

800 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-830

830 nm

1200 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-940

940 nm

800 mW

≤ 2nm

≤ 0.2% rms, 10Hz-20MHz bandwidth

See product
Product ref. LBX-980

980 nm

1000 mW

≤ 2nm

≤ 0.8% rms, 10Hz-20MHz bandwidth

See product
Product ref. Wavelength range Power range
