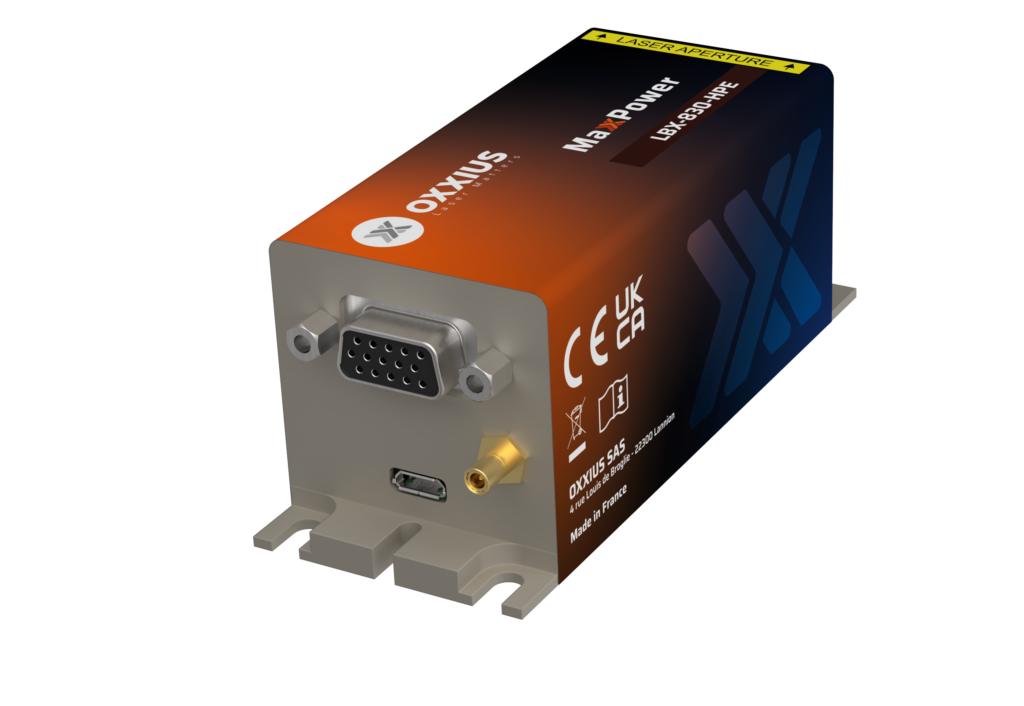

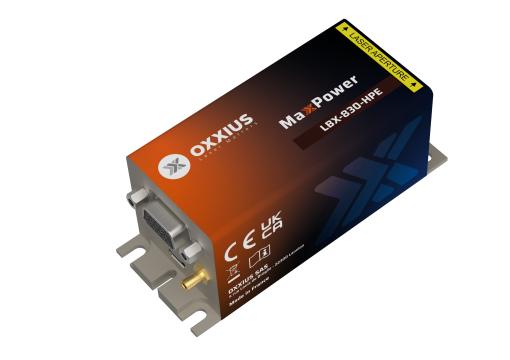

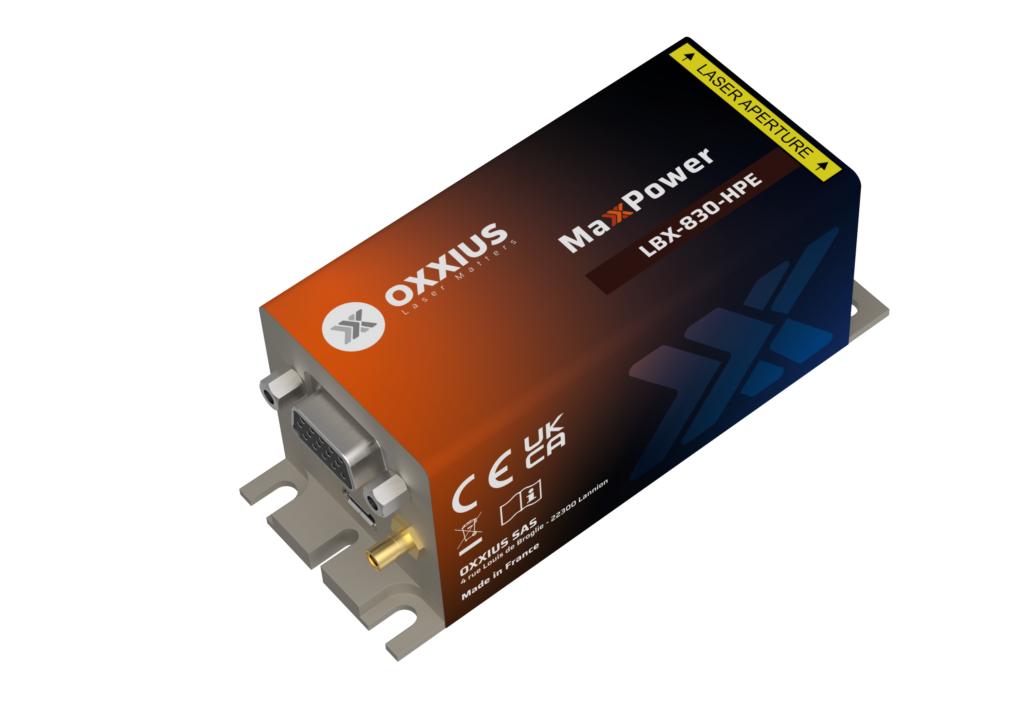

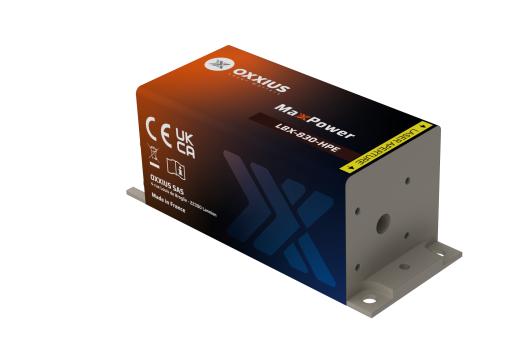

MaxxPower 830 nm
LBX-830
The MaxxPower LBX-830 is a compact 830 nm laser source that exhibits the highest optical power over an industry-standard 100×40 mm footprint. Its robust design, complete with readily available safety features makes it well-suited for both laboratory and industrial use.
This model is a trusted solution for illumination or wide-field microscopy.
Key features
• ±1.0 % long-term power stability; low optical noise
• Modulation up to 1 MHz
• Integrated control electronics
Fully compatible with Oxxius MixxWave combiners for multi-mode fiber delivery in conjunction with other laser lines.
References and product variations
Part number
Emission wavelength
Free space output
Options
Ask for a quote
Part number LBX-830-1200-HPE-PPA
Optical characteristics
Emission wavelength
830 nm
Tolerance
(±5 nm tolerance)
Control modes
Automated power control (APC), Automated current control (ACC)
Optical noise
≤0.2 % rms, 10 Hz-20 MHz bandwidth
Spectral linewidth
≤2 nm
Rise / fall time
≤200 ns
Bandwidth
≥1 MHz
Beam diameter, 1/e² level, 50mm from the beam aperture
5.2 x 2.6 mm
Beam divergence, 1/e² level full beam, far field
0.3 x 22 mrad
General specifications
Supply voltage
5 V to 12 V
Operating temperature
10 °C to 50 °C
Storage temperature and humidity
0 °C to 60 °C
Warm up time
≤2 minutes
Interfaces
USB, RS-232, direct modulation inputs
Dimensions (laser head)
100x40x40 mm
Weight (laser head)
≤330 g
Controler dimensions
106x126x56 mm
Compliance
CE (incl. IEC 60825-1) and FDA 21 CFR 1040.10 / 1040.11
Laser class
4
Warranty
24 months or 5000 hours, whichever occurs first
