MixxWave Single Frequency Laser Combiner

Wavelength Combiners (L4Cc & L6Cc)

The Oxxius MixxWave single frequency laser combiner merges multiple narrow-linewidth laser sources — with spectral linewidths as low as 1 MHz, from 473 to 1064 nm — into a single, precisely aligned output. Available in two configurations, the L4Cc (up to 4 lasers) and the L6Cc (up to 6 lasers), it is designed for coherence-sensitive applications such as precision spectroscopy, interferometry and Brillouin measurements, where beam purity and spectral stability are critical.

Key features
• L4Cc: up to 4 lasers, 2 AOMs • L6Cc: up to 6 lasers, 2 AOMs
• Combines 375–1064 nm wavelengths
• Up to 4 fiber or free-space outputs
• Integrated electro-mechanical shutters on each port
• Extension modules for port switching, power split, or AOTF modulation

Logo Mixxwave
L6Cc
L6Cc

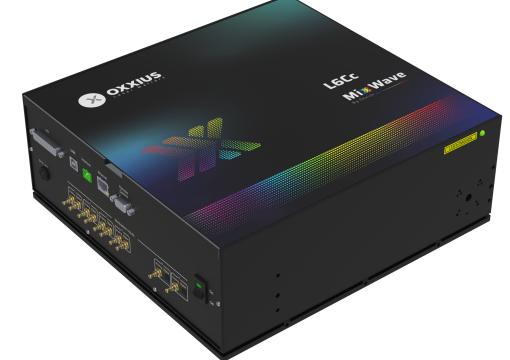

Oxxius MixxWave L6Cc laser wavelength combiner
L6Cc

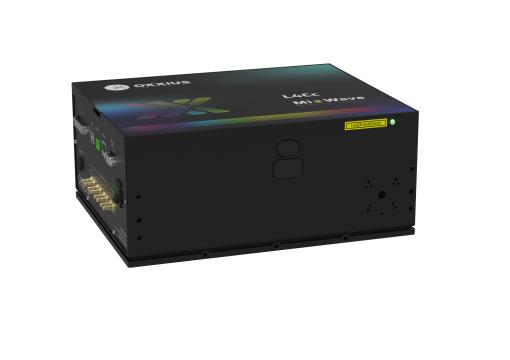

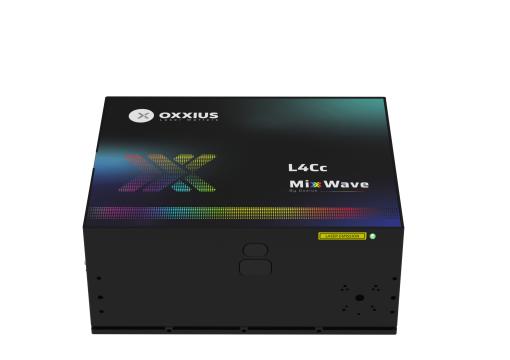

Oxxius MixxWave L4Cc laser wavelength combiner
L4Cc
L4Cc
L4Cc

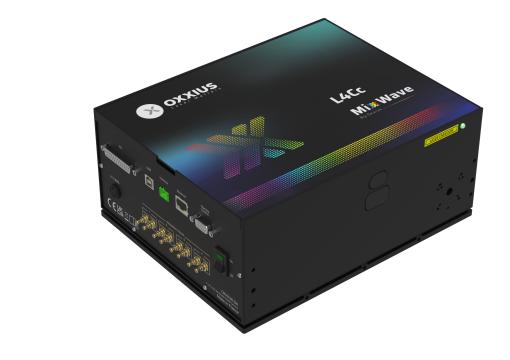

Oxxius MixxWave L4Cc laser combiner
L4cc

Select your combiner*

Select your options

Select your lasers

Choose the laser references you want to combine.

Reference

Wavelength

Power range

Spectral linewidth

Optical noise

Powers

Select lasers

LPX-473S

473 nm

50

≤ 1 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

LCX-532S (fixed power)

532 nm

50-800

≤ 1 MHz

≤ 0.2% rms, 10 Hz-20 MHz bandwidth

L1C-532S (adjustable power)

532 nm

50-800

≤ 1 MHz

≤ 0.5% rms, 10Hz-20MHz bandwidth

LCX-553S (fixed power)

553 nm

100-200

< 1 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

L1C-553S (adjustable power)

553 nm

50-200

≤ 1 MHz

≤ 0.5 % rms, 10 Hz-20 MHz bandwidth

LCX-561S (fixed power)

561 nm

50-500

< 1 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

L1C-561S (adjustable power)

561 nm

50-500

< 1 MHz

≤ 0.5 % rms, 10 Hz-20 MHz bandwidth

LBX-633S

633 nm

40

≤ 100 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

LSX-785S (fixed power)

785 nm

150

≤ 100 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

LBX-785S (adjustable power)

785 nm

500

0.07 nm

≤ 0.2 % rms, 10Hz-20 MHz bandwidth

LBX-830S

830 nm

100

≤ 100 MHz

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

LBX-830S pigtailed

830 nm

500

≤ 70 pm

≤ 0.2 % rms, 10 Hz-20 MHz bandwidth

LCX-1064S (fixed power)

1064 nm

100-500

< 1 MHz

≤ 0.5% rms, 10 Hz-20 MHz bandwidth

L1C-1064S (adjustable power)

1064 nm

100-500

< 1 MHz

≤ 0.5 % rms, 10 Hz-20 MHz bandwidth

General specifications

Power stability (baseplate temperature +/− 3K)

Free space

±1 % p-to-p

PM + SM fiber coupled

±2 % p-to-p

PM + SM fiber coupled

Analog (0 - 5 V)

DC - 1 MHz

Rising time using digital modulation (TTL)

≤2 ns (LBX) / ≤150 ns (LCX with AOM)

Power extinction ratio

Infinite (LBX) / ≥ 40 dB (LCX with AOM)

System specifications

Operating temperature

15°C to 40°C at baseplate

Supply voltage, standard Plug and Play version

100 - 240 V AC

Supply voltage, OEM version

24 V DC

Warm-up time

30 minutes

Communication interfaces

USB, Ethernet, dedicated electrical interface

Software

Full access from µManager, dedicated Oxxius software

Typical weight

L4Cc: 7 to 9 kg L6Cc: 10 to 12 kg

Warranty

24 months

Available options

Single-mode fiber coupling

Multimode fiber coupling

Heat management

Broadband beam splitter

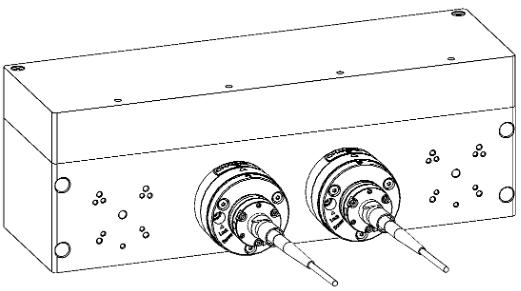

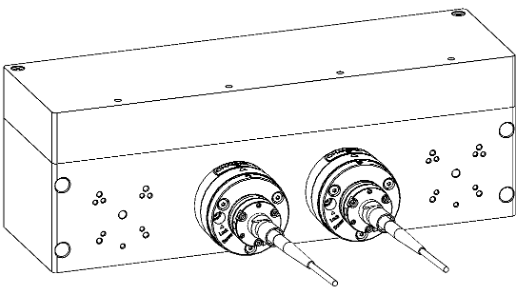

1:2 High rate switch

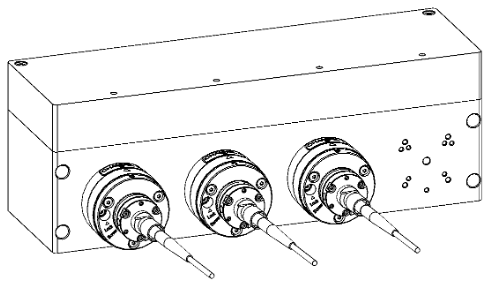

1:3 High rate switch

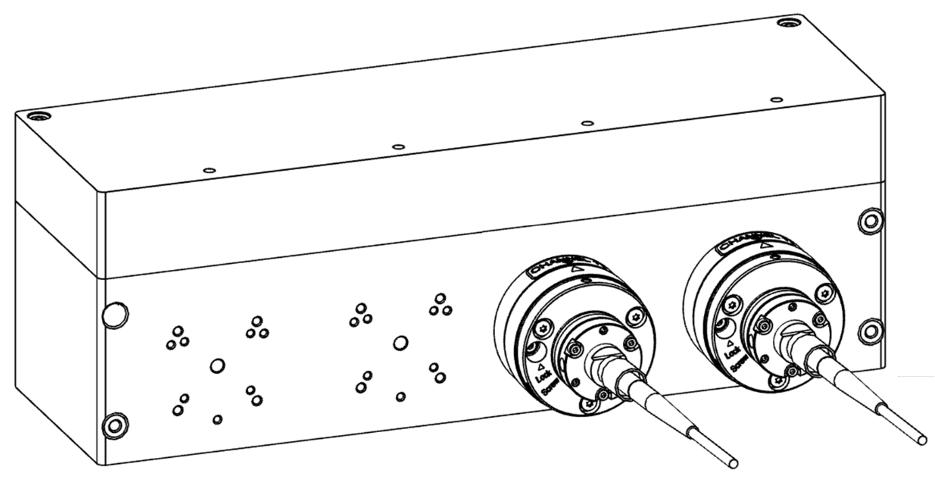

1:2 Beam switch

Controlled optical density

Multi-channel modulation

Why Single Frequency Matters in a Laser Combiner?

Single-frequency (narrow-linewidth) lasers emit light on a single longitudinal mode, providing exceptional spectral purity and long coherence length. When combined through the MixxWave, this narrow linewidth — as low as 1 MHz for select references — is preserved across all channels, making the combiner suitable for measurement techniques that depend on coherence, such as heterodyne detection, interferometry, and high-resolution spectroscopy.

MixxWave Configurations: CW & Modulated, High Power, or Single Frequency?

Oxxius offers the MixxWave combiner in three configurations to match different source types:

  • The CW & Modulated version covers general-purpose multi-wavelength imaging and spectroscopy.
  • The High Power version is built for applications requiring higher optical power per channel.
  • The Single Frequency version, covered on this page, is optimized for narrow-linewidth sources used in coherence-sensitive measurement applications.

Applications

The MixxWave single frequency laser combiner is used in applications requiring narrow spectral linewidth and high coherence, including precision spectroscopy, Brillouin spectroscopy, interferometry, and other coherence-sensitive measurement techniques.

Why Choose the Oxxius Single Frequency MixxWave?

Manufactured in France with full vertical integration, the Oxxius single frequency MixxWave combines narrow-linewidth laser sources, thermal stability, and a compact mechanical design engineered for demanding research and OEM environments. Every combiner is factory-aligned and validated for long-term reliability, backed by a 24-month warranty.

Need help?

Frequently Asked Questions

Choosing a multicolor laser combiner involves a range of technical decisions: from the number of wavelengths and source types to modulation modes, fiber outputs, and software integration. The questions below address the most common topics raised by researchers, system integrators, and OEM partners when specifying a MixxWave L4Cc or L6Cc. If your question is not covered here, our team is available to help you define the right configuration for your application.
