LBX-520-HPE

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry standard compact package).
It comes in free space multimode elliptical beam or with removable MM fiber coupling.

Made for Microscopy, Medical, Illumination, High-Throughput inspection, Polymer curing, Laser pumping and sensor applications.

tHE LBX-520-HPE is compatible in the L6Cc-HPE Combiner .

It provides with :

  • Integrated control electronics
  • USB and RS232 interfaces
  • Dedicated control software
  • External controller with power display (Plug&Play versions, CDRH-compliant)
  • Datasheet

Product variations

Reference Wavelenghts Power Options Quote
LBX-520-HPE-800 520 nm 800 mW

Options

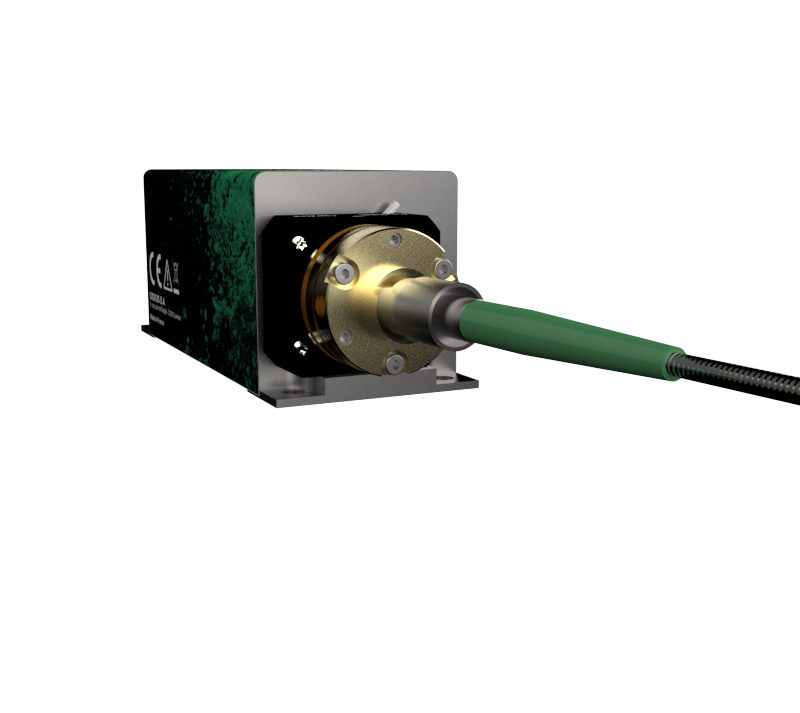

Multimode fiber coupling

The ACX-FCMM option offers a cost-effective and compact way to couple the LaserBoxx beam into a multimode fiber. The coupling efficiency exceeds 80% Standard patchcord configuration :
• 0.22 numerical aperture,
• SMA connector,
• 2 m fiber length

Other configuration on demand

Heat sink

Forced air heat sink for LBX, LCX with 5V PSU

Drawings
