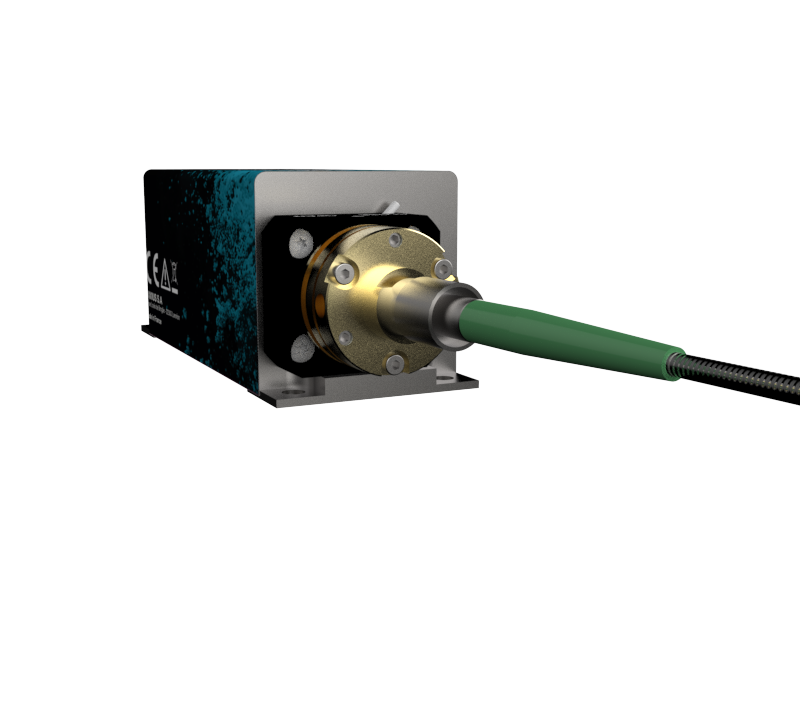

The ACX-FCMM option offers a cost-effective and compact way to couple the LaserBoxx beam into a multimode fiber. The coupling efficiency exceeds 80% Standard patchcord configuration :
• 0.22 numerical aperture,
• SMA connector,
• 2 m fiber length
Other configuration on demand
LBX-488-HPE
The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry standard compact package).
It comes in free space multimode elliptical beam or with removable MM fiber coupling.
Made for Microscopy, Medical, Illumination, High-Throughput inspection, Polymer curing, Laser pumping and sensor applications.
tHE LBX-488-HPE is compatible in the L6Cc-HPE Combiner .
It provides with :
- Integrated control electronics
- USB and RS232 interfaces
- Dedicated control software
- External controller with power display (Plug&Play versions, CDRH-compliant)
Product variations
| Reference | Wavelenghts | Power | Options | Quote |
|---|---|---|---|---|
| LBX-488-HPE-1000 | 488 nm | 1000 mW |
|
Options
Multimode fiber coupling
Heat sink
Forced air heat sink for LBX, LCX with 5V PSU
Drawings
