StaxxBeam 532 nm (fixed power)

LCX-532S (fixed power)

The StaxxBeam 532 is a compact and powerful 532 nm laser source that delivers a narrow linewidth emission and a spectrum of outstanding purity. Its robust design, complete with readily available safety features makes it well-suited for both laboratory and industrial use.
Its proven performance, stability, and versatility make it a trusted solution for laser Doppler anemometry, Raman and Brillouin spectroscopy, interferometry, zeta-potential measurements, and other applications.

Key features:
• Single frequency emission, ≤ 1 MHz linewidth
• ≤ 1 pm wavelength stability
• TEM₀₀ spatial mode
• ±1.0 % long-term power stability; low optical noise
• Integrated control electronics

Fully compatible with Oxxius’ AOM option, or with MixxWave combiners, in combination with other laser lines.

Request a quote
Staxxbeam
Oxxius LCX-532L — high power compact visible laser 532 nm up to 800 mW CW single-frequency TEM₀₀
LCX-532S

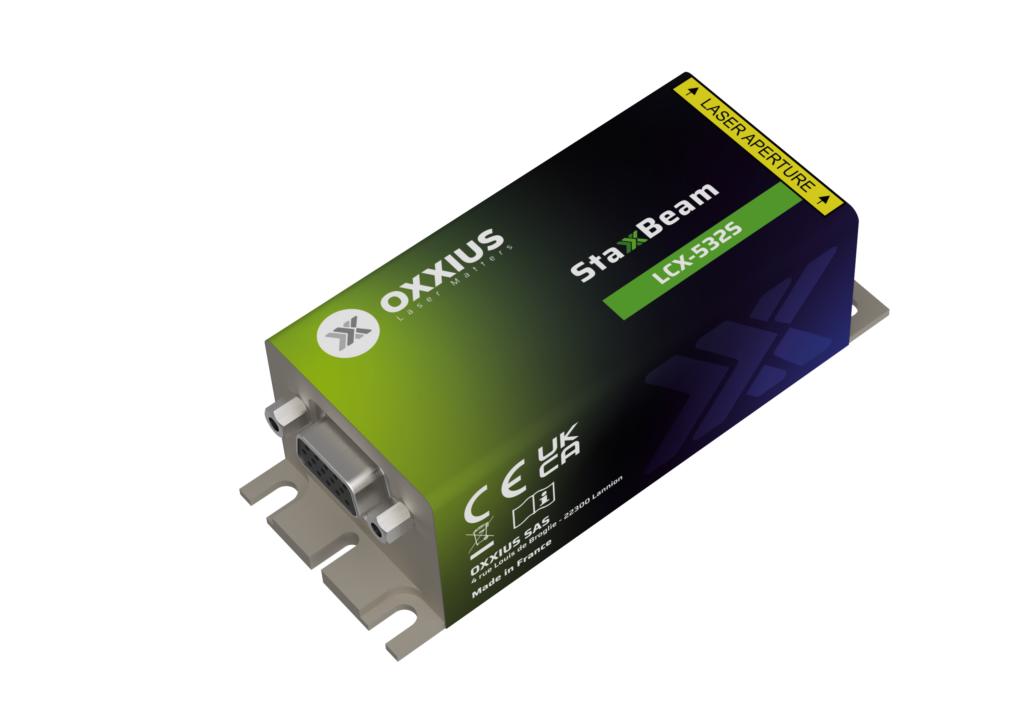

Lcx 532s.2

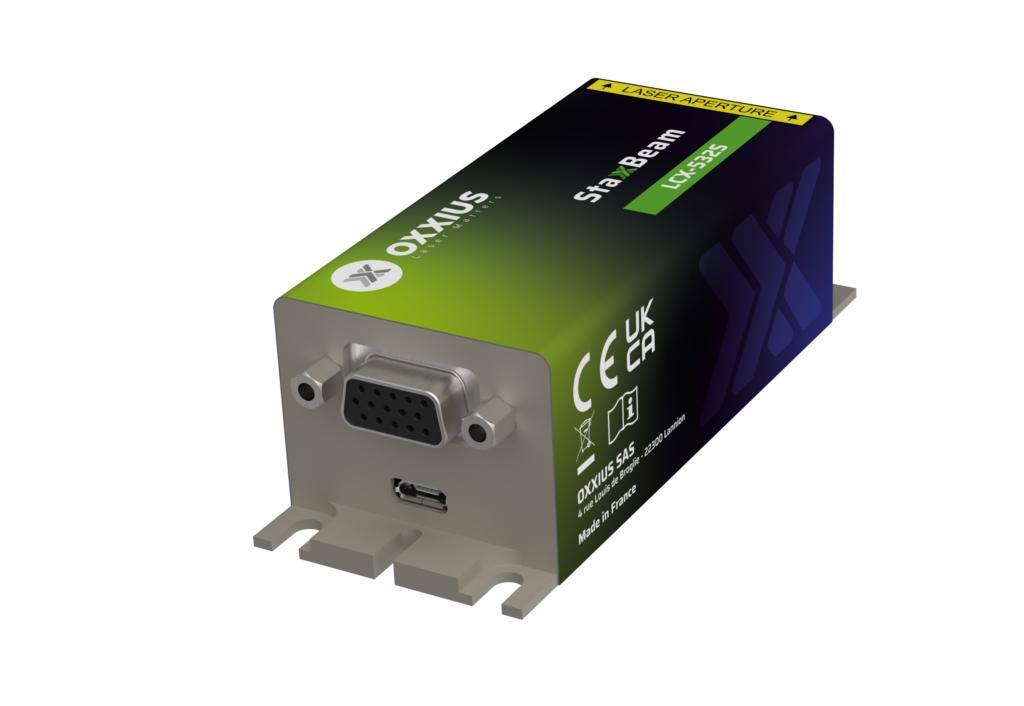

Lcx 532s.3

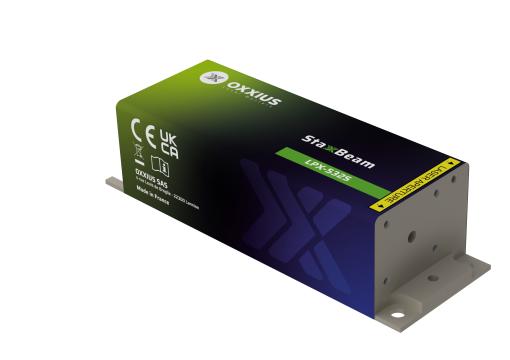

Lpx 532s.1
LPX-532S

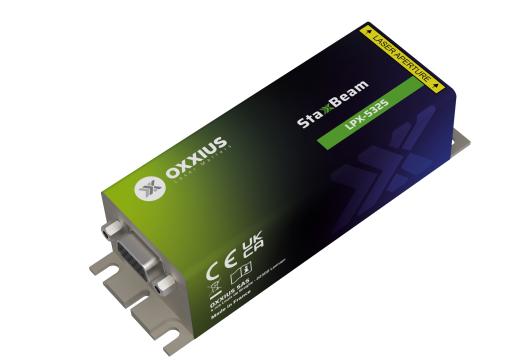

Lpx 532s.2

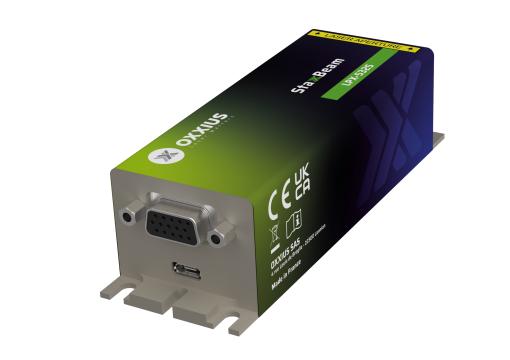

Lpx 532s.3

References and product variations

Part number

Emission wavelength

Free space output

Options

Ask for a quote

Part number LCX-532S-50-CSB-PPF

532 nm

50 mW

Part number LCX-532S-100-CSB-PPF

532 nm

100 mW

Part number LCX-532S-150-CSB-PPF

532 nm

150 mW

Part number LCX-532S-200-CSB-PPF

532 nm

200 mW

Part number LCX-532S-300-CSB-PPF

532 nm

300 mW

Part number LPX-532S-500-CSB-PPF

532 nm

500 mW

Part number LPX-532S-800-CSB-PPF

532 nm

800 mW

Optical characteristics

Emission wavelength

532 nm

Tolerance

±0.3 nm

Control modes

Automated power control, fixed or adjustable power level

Optical noise

≤ 0.2% rms, 10 Hz-20 MHz bandwidth

Spectral linewidth

≤ 1 MHz

Wavelength stability over 8 hours, temperature within ±3°C

≤ 1 pm

Wavelength drift over consecutive on/off cycles, temperature within ±3°C

≤ 1 pm

Coherence length

≥ 100 m

Side mode suppression ratio, +/-0.5nm from the main peak

≥ 30 dB

Side mode suppression ratio, +/-5nm from the main peak

≥ 60 dB typ.

Transverse single mode free-space beam

Beam diameter, 1/e² level, 50mm from the beam aperture

0.7 ±0.1 mm (±0.15 mm for 500 mW and above)

Beam divergence, 1/e² level full beam, far field

≤ 1.4 mrad

Beam quality factor M²

< 1.1

Beam circularity, far field

≥ 90 %

Polarization state

Linear, vertical, extinction ratio ≥ 20 dB

General specifications

Power consumption

20 W max.

Supply voltage

5 V to 12 V

Operating temperature

10 °C to 50 °C

Storage temperature and humidity

0 °C to 60 °C

Warm up time

≤ 10 minutes

Interfaces

USB, RS-232, direct modulation inputs

Dimensions (laser head)

100x40x32 mm

Weight (laser head)

≤ 300 g

Controler dimensions

109x84x30 mm

Compliance

CE (incl. IEC 60825-1) and FDA 21 CFR 1040.10 / 1040.11

Laser class

3B

Warranty

24 months or 10000 hours, whichever occurs first

Available options

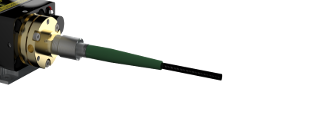

Single-mode fiber coupling

Multimode fiber coupling

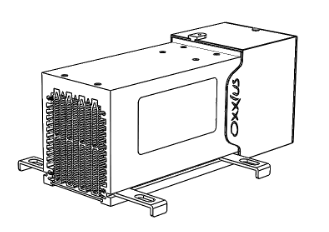

Heat management

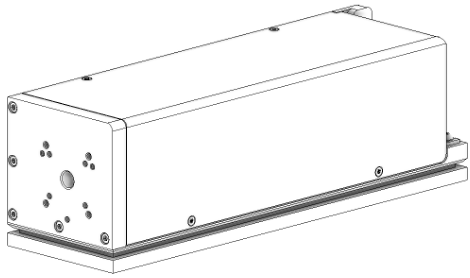

High rate modulation

Optical Isolator

OEM version
