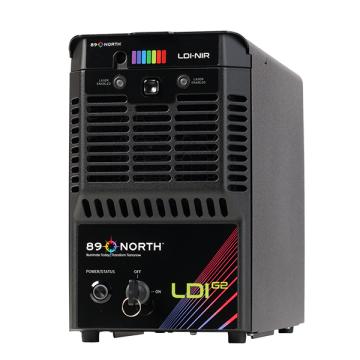

LDI-G2-NIR Laser Diode Illuminator
LDI-G2-NIR
The LDI-G2-NIR takes the proven performance of the G2 family and pushes it further into the near-infrared spectrum. Offering exceptional power density and stable excitation across both visible and NIR wavelengths, this illuminator opens new possibilities for deep-tissue imaging, optogenetics, and advanced fluorescence applications. The LDI-G2-NIR delivers consistent, reproducible illumination in experiments where clarity and stability are critical.
Key features
- 7 laser lines from 405 nm to 730 nm (full visible + NIR)
- Up to 1000 mW output power per line
- Feedback-controlled optical stability (< 0.2% CW)
- 0.1% intensity control steps
- Dedicated 730 nm NIR channel for deep-tissue imaging & multiplexing
- No user alignment required
- TTL & Analog control
- QUAREP-LiMi WG1 compliant
References and product variations
Part number
Combined wavelengths (nm)
Options
Ask for a quote
Part number LDI-G2-NIR
Part number LDI-G2-NIR-577
Part number LDI-G2-NIR-488
Part number LDI-NIR-488-577
Performance by Wavelength
Wavelength
Optical Power Min (1)
CW Stability (typ.) (2)
Max Rise Time (typ.) (3)
Max On/Off Frequency (4)
405
Optical Power Min (1) 450 mW
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
445
Optical Power Min (1) 1000 mW
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
470 or 488
Optical Power Min (1) 1000 mW (5)
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
520
Optical Power Min (1) 500 mW
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
555 or 577
Optical Power Min (1) 700 or 500 mW (6)
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 2 ms
Max On/Off Frequency (4) 100 Hz
640
Optical Power Min (1) 1000 mW
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
730
Optical Power Min (1) 750 mW
CW Stability (typ.) (2) < 0.2%
Max Rise Time (typ.) (3) < 5 µs
Max On/Off Frequency (4) > 1000 Hz
(1) Defined in accordance with the QUAREP-LiMi WG 1 standard, “Illumination Power, Stability, and Linearity Measurements for Confocal and Widefield Microscopes V.2”, Section 8, with power output measured at the fiber output.
(2) Measured at 100% intensity, 23°C ± 2°C.
(3) Defined in accordance with the QUAREP-LiMi WG 1 standard, “Illumination Power, Stability, and Linearity Measurements for Confocal and Widefield Microscopes V.2”, Section 8, with power output measured at the fiber output.
(4) Measured at 100% intensity, 50% duty cycle
(5) 470 or 488 - Optical Power Min: 488 nm optical power min preliminary estimate. Actual output power pending product release.
(6) 555 or 577 - Optical Power Min: 577 nm optical power min preliminary estimate. Actual output power pending product release.
Optical characteristics
Output Power
Up to 1000 mW per line + higher power density via 400 µm single fiber
Optical Stability
Active feedback control < 0.2% CW stability (10× improvement)
Laser Lines
Up to 7 lines: 405 / 445 / 470 or 488 520 / 555 or 577 / 640 / 730 nm
NIR Channel (730 nm)
✔ Deep-tissue imaging Extended spectral range beyond visible
Beam Quality
Improved beam quality Cleaner, more stable output profile
Fiber Output
400 µm single → higher power density
User Alignment
Not required
LDI-G2-NIR Laser Diode Illuminator General specifications
Output Options
Optical fiber
(400 µm single, 0.39 NA)
Control Options
TTL (> 2.3 V) | Analog (0–5 V)
USB–DSP (virtual COM port)
Intensity Control
0.1% steps (10× finer)
Full linear range
Safety
Interlocked housing | Key interlock
IEC 60825 compliant
QUAREP-LiMi WG1
✔ Compliant
Dimensions
318 × 234 × 146 mm
(12.5" × 9.2" × 5.75")
Weight
~ 4 kg (~9 lbs)
Operating Temp.
15 to 30 °C
Storage Temp.
-18 to 50 °C
Humidity
< 80% non-condensing
Voltage
90–220 V AC, 50–60 Hz
Warranty
2 years
Applications / Techniques
Spinning Disk Microscopy
Widefield Microscopy
Light Sheet Microscopy
Structured Illumination Microscopy (SIM)
Super Resolution Imaging
TIRF
PALM / STORM / DNA-PAINT
FRAP
Photoactivation / Photoconversion
Photoablation
Optogenetics
Near Infrared (NIR) Imaging — 730 nm
Neuroscience / Physiology
Cellular Biology
Single Molecule FISH (smFISH)
Spatial Transcriptomics / Proteomics
Digital Pathology
