Low Noise lasers

Low Noise CW Monolithic DPSS benefits
– Up to 500 mW
– Low profile laser head (32 mm)
– Lowest power consumption

≤12 W for LCX’s, any wavelength, less than 200 mW

≤15 W for LCX-532 & LPX-640, 500 mW

≤15 W for LCX-561, 300 mW

– Tailored beam diameter capability (0.6 up to 1.4 mm)



Laser Diode modules benefits
– Fast TTL and analog modulation
– Optional clean up filter

• Super Resolution Imaging
• Confocal Microscopy
• Flow Cytometry
• DNA Sequencing
• Optogenetics
• Fluorescence Excitation
• Wavelength Combiner
• Polymer Curing

Optical characteristics

Technology :
Reference
Wavelengths
Power
Optical noise
Analog bandwidth
Max Freq. Digital
Drawing
LBX-375
375 nm
70 mW
≤ 0.2% rms
≥ 3 MHz
150 MHz
LBX-405
405 nm
50 to 300mW
≤ 0.2% rms
≥ 3 MHz
150 MHz
LBX-445
445 nm
100 mW
≤ 0.2% rms
≥ 3 MHz
150 MHz
LBX-450
450 nm
70 mW
≤ 0.2% rms
≥ 3 MHz
150 MHz
LBX-473
473 nm
100 & 300mW
≤ 0.2% rms
≥ 3 MHz
150 MHz
LBX-488
488 nm
50 mW
≤ 0.2% rms
≥ 3MHz
15 MHz
LBX-488
488 nm
40 & 60 to 200 mW
≤ 0.2% rms
≥ 3MHz
150 MHz
LBX-505
505 nm
70 mW
≤ 0.2% rms
≥ 3MHz
150 MHz
LBX-515
515 mm
150 mW
≤ 0.2% rms
≥ 3MHz
150 MHz
LBX-520
520 nm
70 mW
≤ 0.2% rms
≥ 3MHz
150 MHz
LCX-532L
532.3 nm
50 to 500 mW
≤ 0.2% rms
Optional with L1C-AOM
Optional with L1C-AOM
LCX-553L
553.0 nm
50 to 200 mW
≤ 0.2% rms
Optional with L1C-AOM
Optional with L1C-AOM

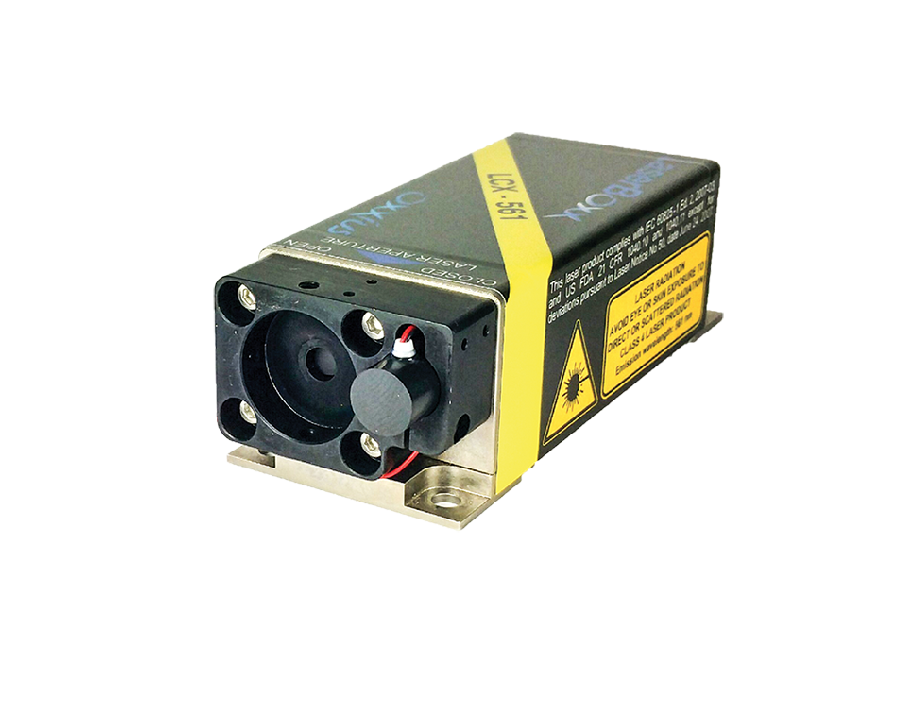

LCX-561L
561.4 nm
50 to 300 mW
≤ 0.2% rms
Optional with L1C-AOM
Optional with L1C-AOM
LBX-633
633 nm
100 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LBX-638
638 nm
100 to 180 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LPX-640L
639.7 nm
300 & 500 mW
≤ 0.2% rms
DC-1.5 kHz
DC-1.5 kHz
LBX-642
642 nm
130 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LBX-647
647 nm
140 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LBX-660
660 nm
100 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LBX-730
730 nm
40 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz
LBX-785
785 nm
100 to 350 mW
≤ 0.2% rms
≥ 3 MHz
≥ 150 MHz

Options

Fiber coupling
Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber.
Electro-Mechanical shutter
The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter.
The fiber coupling and other options are fully compatible with the electro mechnical shutter.
The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.
Heat Sink
Forced air heat sink for LBX, LCX with 5V PSU
Isolator
Mounted isolator available at 532, 561, 6xx and 785nm
Clean-up filter
Filter to eliminate optical noise
