LBX-633

Diode laser – 633 nm

The LBX-633 LaserBoxx consists of a laser diode emitter with an integrated driver. It provides a low-noise optical output, utlra-high beam quality and allows for fast modulation.

The LBX LaserBoxx offers an excellent stability and fast modulation capabilities.

It makes it the best product for Fluorescence microscopy, Super resolution Imaging, Confocal Microscopy, Flow citometry, DNA Sequencing, Optogentics, Polymer curing, Material analysis and Laser marking.

LBX-633 is compatible in the L4Cc Combiner  and L6Cc Combiner .

It provides with :

  • Integrated control electronics
  • SM/PM/MM fiber coupling options
  • USB and RS232 interfaces
  • Dedicated control software
  • External controller with power display (Plug&Play versions, CDRH-compliant)
  • Datasheet

Product variations

Reference Wavelenghts Power Options Quote
LBX-633-100 633 nm 100 mW

Options

Fiber coupling

Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber.

Electro-Mechanical shutter

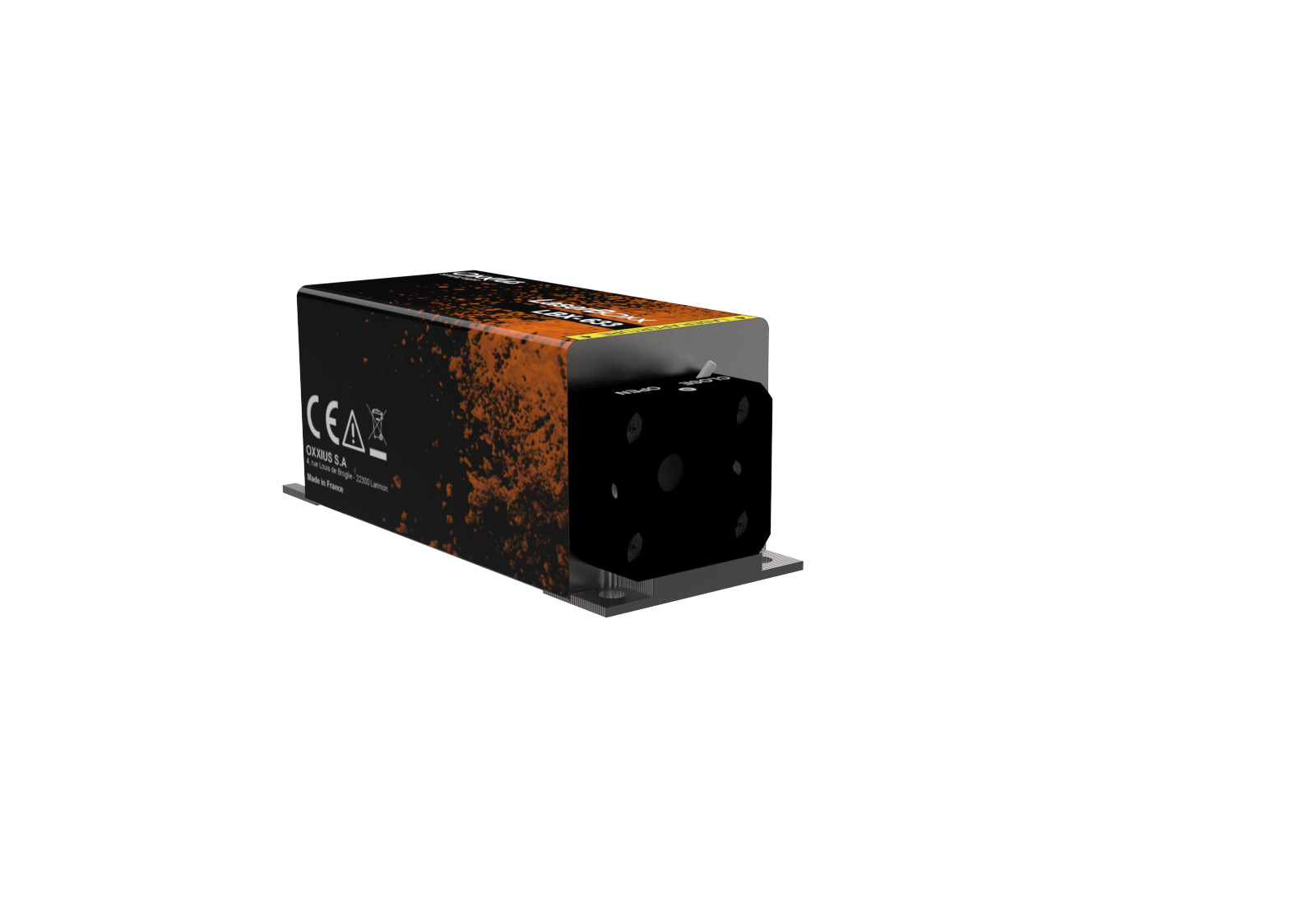

The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter.
The fiber coupling and other options are fully compatible with the electro mechnical shutter.
The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.

Drawings
