DPSS laser – 532 nm

The LCX-532L LaserBoxx are diode-pumped solid-state laser sources.

The unique feature of these models is a proprietary, Alignement-free Monolhitic Resonator (AMR).
This technology yields to highly efficient pump schemes and allows for the highest spectral quality on the market.

The LCX-532L is insentive to temperature variations and to mechanical vibrations.

LCX-532L is compatible in the L4Cc Combiner  and L6Cc Combiner .

It provides with :

  • Integrated control electronics
  • SM/PM/MM fiber coupling options
  • USB and RS232 interfaces
  • Dedicated control software
  • External controller with power display (Plug&Play versions, CDRH-compliant)
  • Datasheet

Product variations

Reference Wavelenghts Power Options Quote
LCX-532-50 532 nm 50 mW
LCX-532-100 532 nm 100 mW
LCX-532-150 532 nm 150 mW
LCX-532-200 532 nm 200 mW
LCX-532-300 532 nm 300 mW

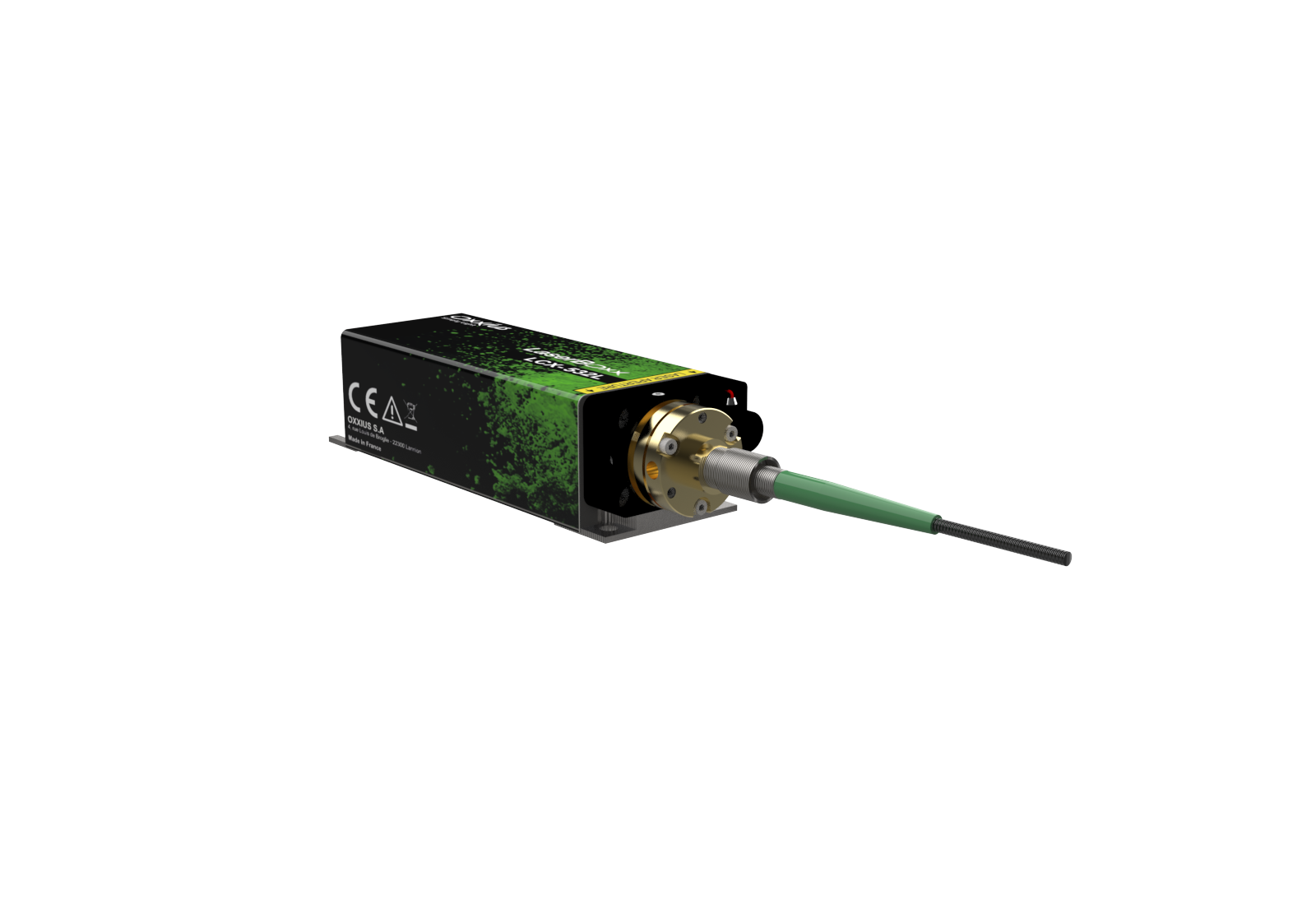

Fiber coupling

Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber.

Electro-Mechanical shutter

The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter.
The fiber coupling and other options are fully compatible with the electro mechnical shutter.
The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.

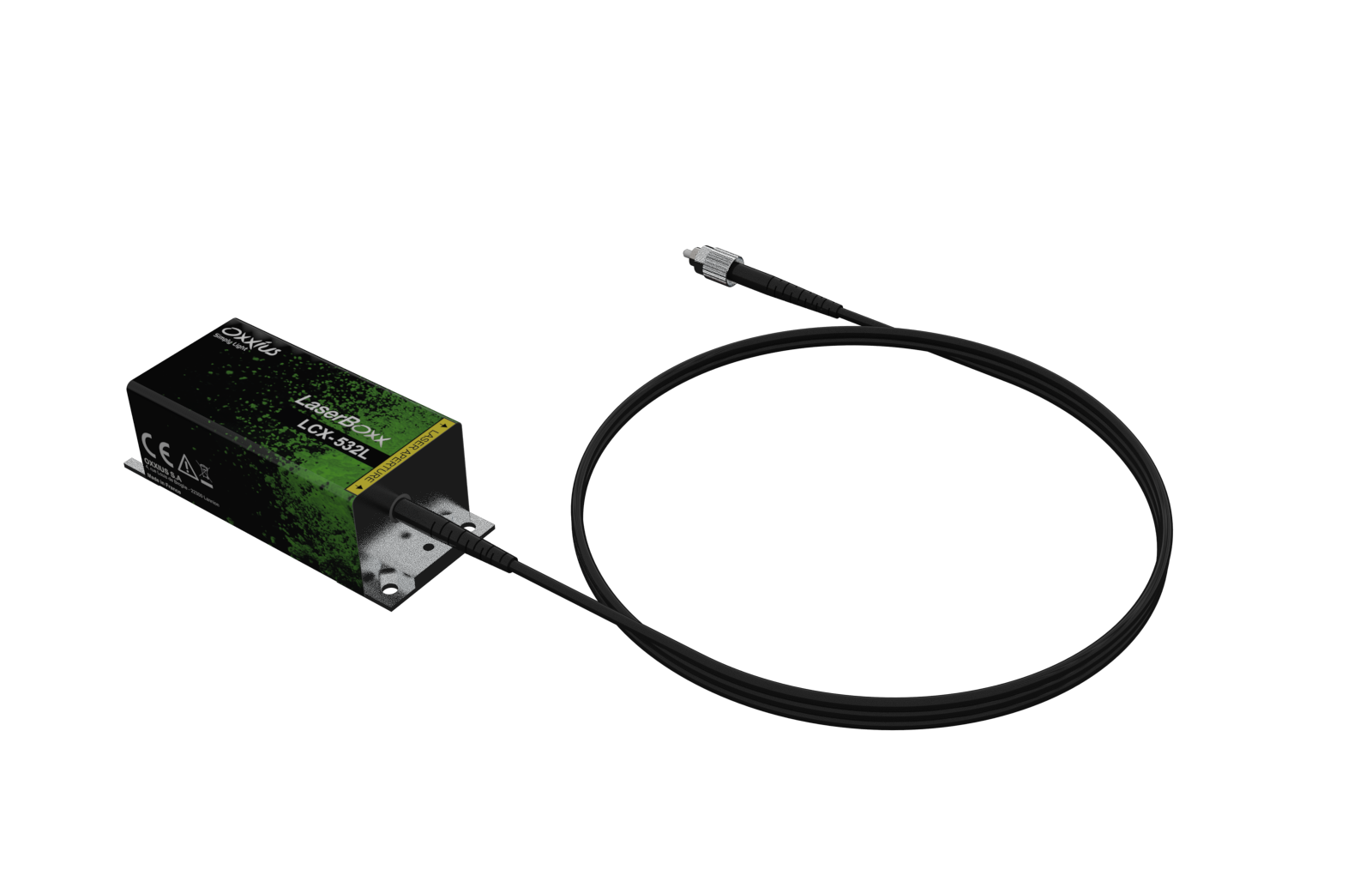

Pigtailed laser
