FlexxRay 553 nm (adjustable power)
LCX-553L (adjustable power)

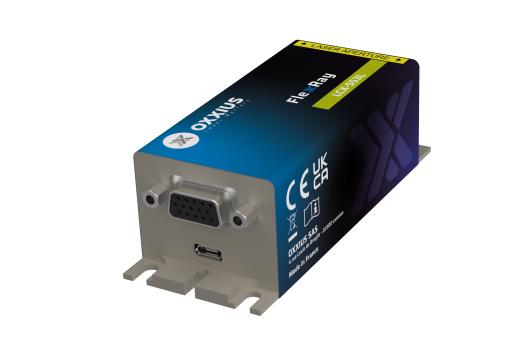

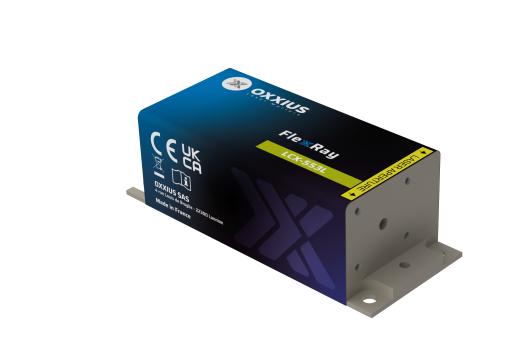

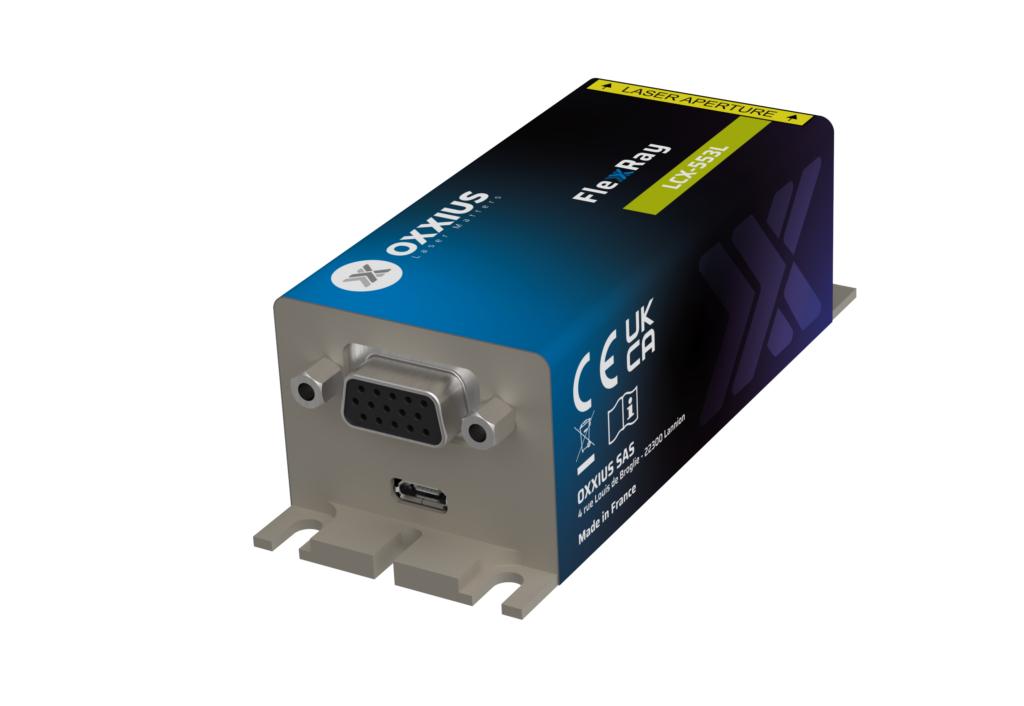

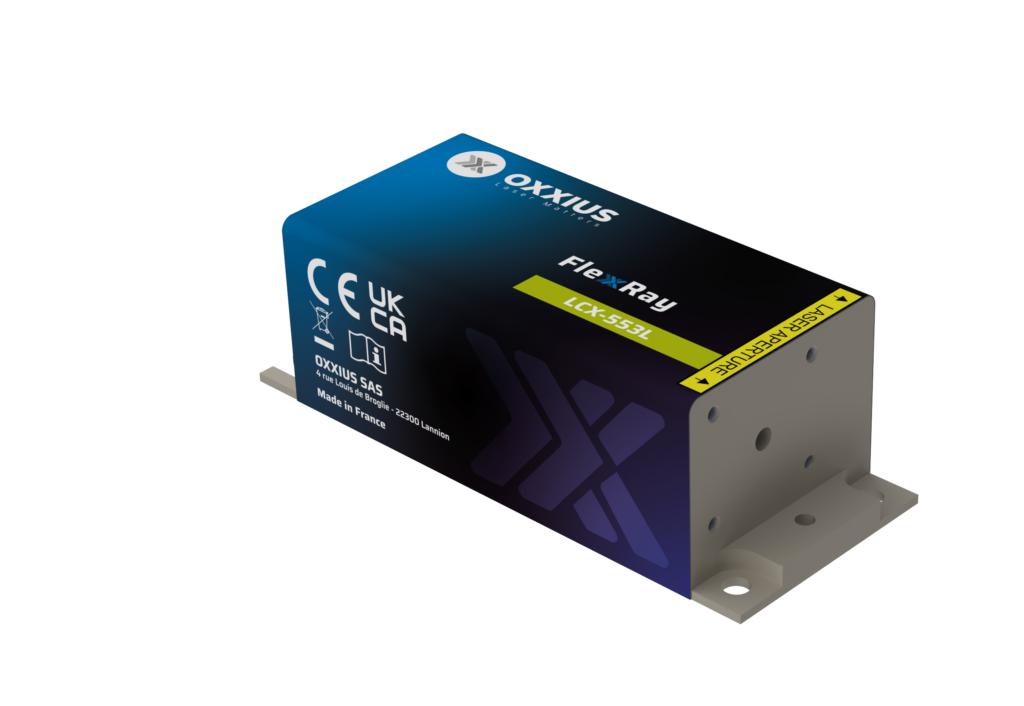

The FlexxRay LCX-553L is a compact 553nm laser source delivering one of the highest power available on the market over a beam of superior quality. Its robust design, complete with readily available safety features makes it well-suited for both laboratory and industrial use.
Key features
• TEM₀₀ spatial mode
• ±1.0 % long-term power stability
• User-adjustable optical power
• Integrated control electronics
Fully compatible with Oxxius MixxWave combiners for single-mode fiber delivery alongside other laser lines.
References and product variations
Part number
Emission wavelength
Free space output
Options
Ask for a quote
Part number LCX-553L-50-CSB-PPA
Part number LCX-553L-100-CSB-PPA
Part number L1C-553L-200-CSB-MPA
Optical characteristics
Emission wavelength
553 nm
Tolerance
(±0.4 nm tolerance)
Power stability over 8 hours, temperature within ±3°C
±1.0 %
Control modes
Automated power control, fixed or adjustable power level
Optical noise
≤0.5 % rms, 10 Hz-20 MHz bandwidth
Spectral linewidth
≤0.1 nm
Beam diameter, 1/e² level, 50mm from the beam aperture
0.7 ±0.1 mm
Beam divergence, 1/e² level full beam, far field
≤1 mrad
Beam quality factor M²
<1.1
Beam circularity, far field
≥90 %
Polarization state
Linear, vertical, extinction ratio ≥20 dB
General specifications
Power consumption
20 W max.
Supply voltage
5 V to 12 V (up to 100 mW) 7V to 12V (200 mW)
Operating temperature
10 °C to 50 °C
Storage temperature and humidity
0 °C to 60 °C
Warm up time
≤10 minutes
Interfaces
USB, RS-232
Dimensions (laser head)
100x40x32 mm (up to 100 mW) 154x62x64 mm (200 mW)
Weight (laser head)
≤250 g (up to 100 mW) ≤1150 g (200 mW)
Controler dimensions
109x84x30 mm
Compliance
CE (incl. IEC 60825-1) and FDA 21 CFR 1040.10 / 1040.11
Laser class
Warranty
24 months or 10000 hours, whichever occurs first
