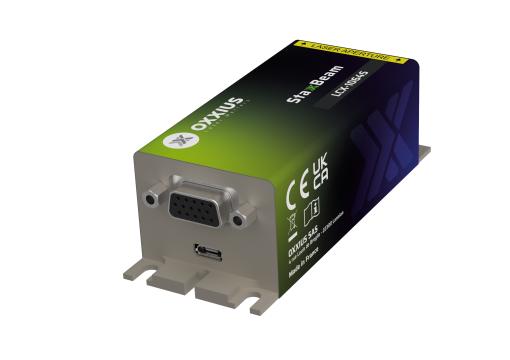

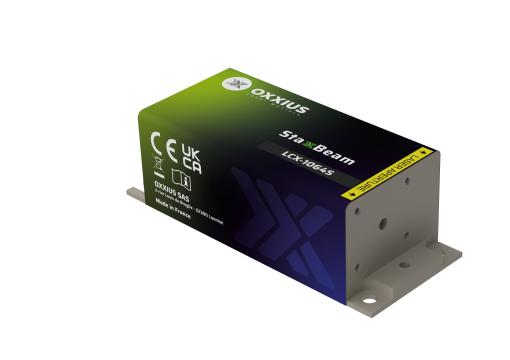

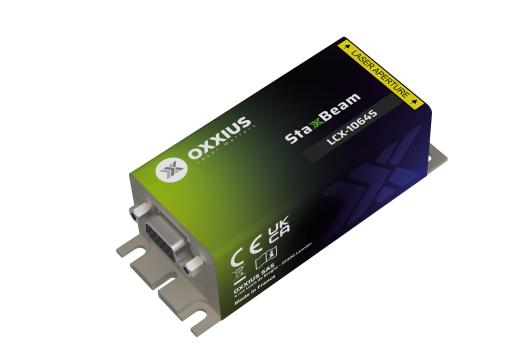

StaxxBeam 1064 nm (fixed power)
The StaxxBeam 1064 is a compact and powerful 1064 nm laser source that delivers a narrow linewidth emission and a spectrum of outstanding purity. Its robust design, complete with readily available safety features makes it well-suited for both laboratory and industrial use.
Its proven performance, stability, and versatility make it a trusted solution for laser Raman spectroscopy, interferometry, laser seed, and other applications.
Key features:
• Single frequency emission, ≤ 1 MHz linewidth
• ≤ 1 pm wavelength stability
• TEM₀₀ spatial mode
• ±1.0 % long-term power stability; low optical noise
• Integrated control electronics
Fully compatible with Oxxius’ AOM option, or with MixxWave combiners, in combination with other laser lines.
References and product variations
Part number
Emission wavelength
Free space output
Options
Ask for a quote
Part number LCX-1064S-100-CSB-PPF
Part number LCX-1064S-200-CSB-PPF
Part number LCX-1064S-300-CSB-PPF
Part number LCX-1064S-500-CSB-PPF
Optical characteristics
Emission wavelength
1064 nm
Tolérance
±0.6 nm
Power stability over 8 hours, temperature within ±3°C
±1 %
Control modes
Automated power control, fixed or adjustable power level
Optical noise
≤ 0.5% rms, 10 Hz-20 MHz bandwidth
Spectral linewidth
< 1 MHz
Wavelength stability over 8 hours, temperature within ±3°C
≤ 1 pm
Wavelength drift over consecutive on/off cycles, temperature within ±3°C
≤ 1 pm
Coherence length
≥ 100 m
Side mode suppression ratio, +/-0.5nm from the main peak
≥ 30 dB
Side mode suppression ratio, +/-5nm from the main peak
≥ 60 dB typ.
Beam diameter, 1/e² level, 50mm from the beam aperture
0.7 ±0.1 mm
Beam divergence, 1/e² level full beam, far field
≤ 2 mrad
Beam quality factor M²
≤ 1.1
Beam circularity, far field
≥ 90 %
Polarization state
Linear, vertical, extinction ratio ≥ 25 dB
General specifications
Power consumption
20 W max.
Supply voltage
5 V to 12 V
Operating temperature
10 °C to 50 °C
Storage temperature and humidity
0 °C to 60 °C
Warm up time
≤ 10 minutes
Interfaces
USB, RS-232, direct modulation inputs
Dimensions (laser head)
100x40x32 mm
Weight (laser head)
< 250 g
Controler dimensions
109x84x30 mm
Compliance
CE (incl. IEC 60825-1) and FDA 21 CFR 1040.10 / 1040.11
Laser class
3B, 4
Warranty
24 months or 10000 hours, whichever occurs first
