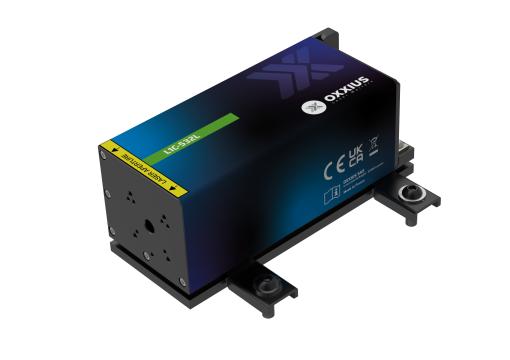

FlexxRay 532 nm (adjustable power)
The FlexxRay LBX-532 is a compact 532nm laser source delivering one of the highest power available on the market over a beam of superior quality. Its robust design, complete with readily available safety features makes it well-suited for both laboratory and industrial use.
Key features
• TEM₀₀ spatial mode
• ±1.0% long-term power stability
• User-adjustable optical power
• Integrated control electronics
Fully compatible with Oxxius MixxWave combiners for single-mode fiber delivery alongside other laser lines.
References and product variations
Part number
Emission wavelength
Free space output
Options
Ask for a quote
Part number LCX-532L-50-CSB-PPA

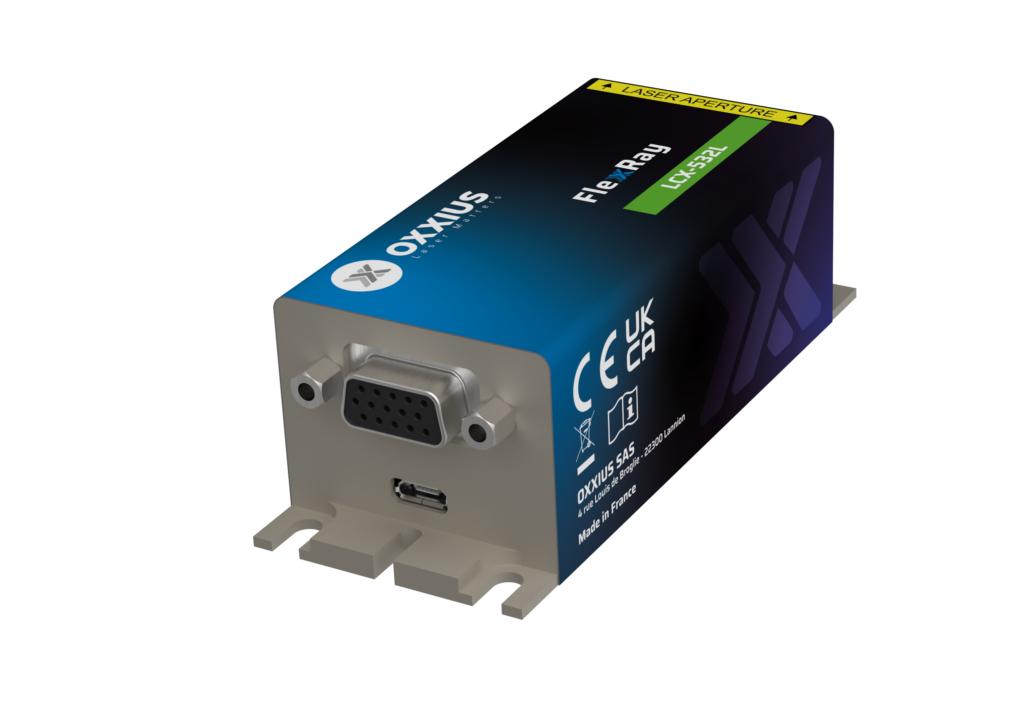

Part number LCX-532L-100-CSB-PPA
Part number LCX-532L-150-CSB-PPA
Part number LCX-532L-200-CSB-PPA
Part number L1C-532L-300-CSB-MPA
Part number L1C+-532L-500-CSB-MPA
Part number L1C+-532L-800-CSB-MPA
Optical characteristics
Emission wavelength
532 nm
Tolérance
(±0.3nm tolerance)
Control modes
Automated power control, fixed or adjustable power level
Optical noise
≤ 0.2% rms (up to 300mW)≤ 0.5% rms (500mW and above), 10Hz-20MHz bandwidth
Spectral linewidth
≤ 0.1nm
Beam diameter, 1/e² level, 50mm from the beam aperture
0.7 ±0.15mm
Beam divergence, 1/e² level full beam, far field
≤ 1.4mrad
Beam quality factor M²
<1.1
Beam circularity, far field
≥ 90%
Polarization state
Linear, vertical,extinction ratio ≥ 20dB
General specifications
Power consumption
20 W max.
Supply voltage
5V to 12V (up to 200mW)7V to 12V (300mW and above)
Operating temperature
10°C to 50°C
Storage temperature and humidity
0°C to 60°C
Warm up time
≤10 minutes
Interfaces
USB, RS-232
Dimensions (laser head)
100x40x32 mm (up to 200mW)154x62x64 mm (300mW)208x62x64 mm (500mW and above)
Weight (laser head)
≤250 g (up to 200mW)≤1150 g (300mW)≤1250 g (500mW and above)
Controler dimensions
109x84x30 mm
Compliance
CE (incl. IEC 60825-1) and FDA 21 CFR 1040.10 / 1040.11
Laser class
3B, 4
Warranty
24 months or 10000 hours, whichever occurs first
