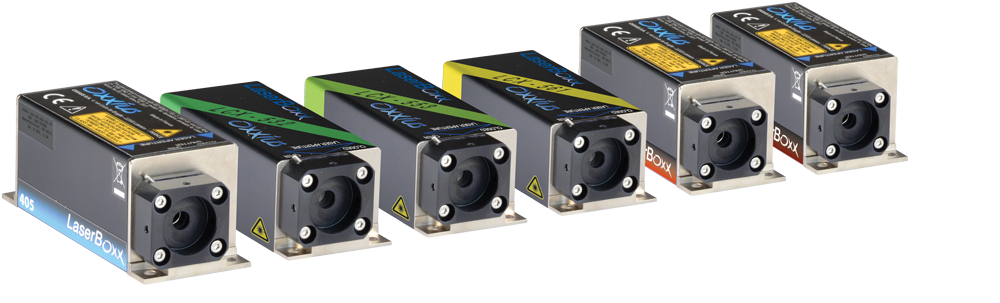

Single Longitudinal Mode lasers

SLM CW Monolithic DPSS benefits
– Up to 500 mW
– Exceptional wavelength stability – 1pm
– Lowest power consumption

≤ 12 W for LCX’s & LPX’s, any wavelength, less than 200 mW
≤ 15 W for LCX-532 & LCX-1064, 500 mW
≤ 15 W for LCX-561 300 mW

– Low profile laser head (32 mm)
– Tailored beam diameter capability (0.6 up to 1.4 mm)



VBG stabilized Laser Diode modules benefits
– Proprietary SLM locking routine
– Enhanced beam quality versions

• Raman Spectroscopy
• Brillouin Scattering
• Interferometry
• Photoluminescence
• Holography
• Laser Doppler Velocimetry
• Laser Ultrasonic
• Dynamic Light Scattering
• Material Analysis
• Laser Marking

Optical characteristics

Technology :
Reference
Wavelengths
Power
Linewidth
Wavelength stability
Drawing
LCX-532S
532.3 nm
50 to 500 mW
≤ 1 MHz
≤ 1 pm
LCX-553S
553.0 nm
50 to 200 mW
≤ 1 MHz
≤ 1 pm
LCX-561S
561.4 nm
100 to 300 mW
≤ 1 MHz
≤ 1 pm
LBX-633S
632.5 nm
40 mW
≤ 100 MHz
≤ 10 pm
LSX-785S-ISO
785 nm
150mW with isolator
≤ 100 MHz
≤ 10 pm
LBX-830S
830 nm
100 mW
≤ 100 MHz
≤ 10 pm
LCX-1064S
1064.6 nm
100 to 500 mW
≤ 1 MHz
≤ 10 pm

Options

Fiber coupling
Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber.
Electro-Mechanical shutter
The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter.
The fiber coupling and other options are fully compatible with the electro mechnical shutter.
The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal.
Heat Sink
Forced air heat sink for LBX, LCX with 5V PSU
Isolator
25 dB isolator mounted in shutter.
532nm Ultra Low Frequency
Option for LCX-532S provide 70dB side mode suppression ratio. Dedicated for Raman spectroscopy. Available up to 200mW
Wavelength selection
Select a precise central wavelength. Contact us for more details
Wavelength adjustment
Tunability of the wavelength. Contact us for specifications
