High Power laser diode modules – HPE series

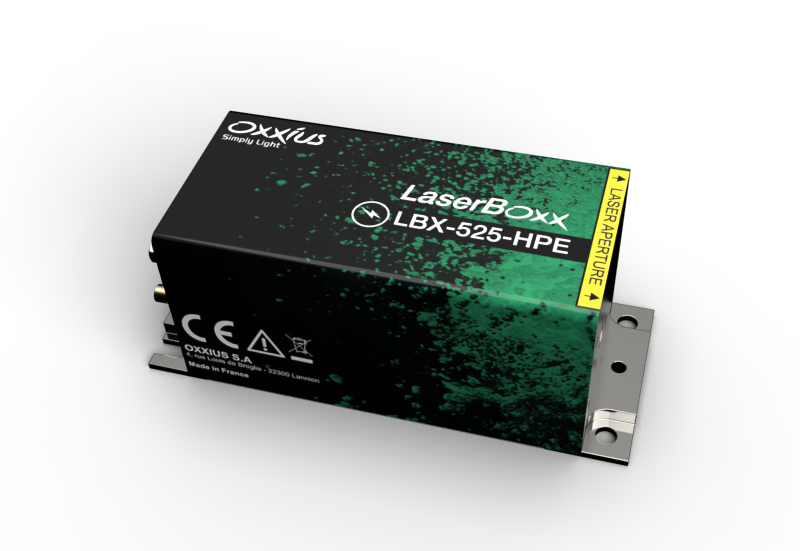

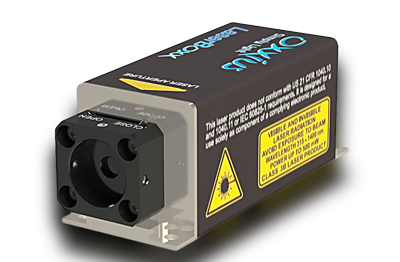

The LaserBoxx HPE series is a high power laser diode module offering excellent performance and reliability in a compact driver integrated laser head (Industry standard compact package).
It comes in free space multimode elliptical beam or with removable MM fiber coupling.

• Microscopy
• Medical
• Illumination
• High-Throughput inspection
• Polymer curing
• Laser pumping
• Sensor

Optical characteristics

Reference

Wavelengths

Power

Linewidth

Analog Bandwidth

Rise / Fall time

Drawing

LBX-375HPE

375 nm

200 & 400 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 300 ns

LBX-405HPE

405 nm

900 & 1200 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-450HPE

450 nm

650 & 1200 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-473HPE

473 nm

1000 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-488HPE

488 nm

1000 & 2000 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-520HPE

520 nm

800 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-638HPE

638 nm

1100 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 500 ns

LBX-750HPE

750 nm

1200 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-785HPE

785 nm

800 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-830HPE

830 nm

1200 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

LBX-940HPE

940 nm

800 mW

≤ 5 nm (2nm typ.)

DC-1 MHz

≤ 200 ns

Options

Multimode fiber coupling

The ACX-FCMM option offers a cost-effective and compact way to couple the LaserBoxx beam into a multimode fiber. The coupling efficiency exceeds 80% Standard patchcord configuration :
• 0.22 numerical aperture,
• SMA connector,
• 2 m fiber length

Other configuration on demand

Heat Sink

Forced air heat sink for LBX, LCX with 5V PSU
